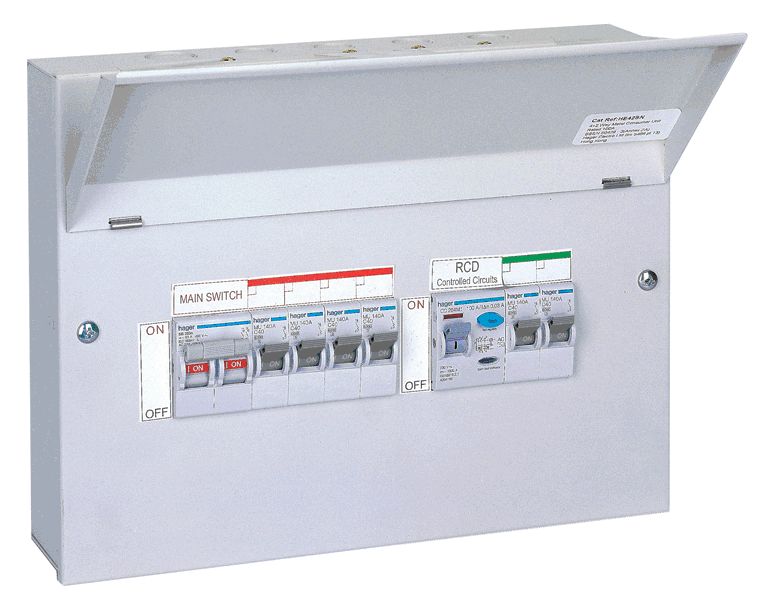

Consumer unit

The metal clad range of consumer units are available with fixed and split load 100A fully tinned busbar.

Consumer unit

The units feature either metal cover, protecting the devices, and can be supplied as either a surface or flush mounted option. The 2 pole incomer options can be either a switch disconnector, a RCCB or a MCB.

The outgoing devices are either MCB's or single/ double modules RCBO's. Blank inserts are available to cover unused ways.

All consumer units have standard size knockouots and are delivered with earth bar, neutral bar, busbar shroud and label kit .
The units have been fully ASTA tested and comply with BS EN60439-3 (annex ZA).

The advantages for you

  • Compact
  • Fitting with enclosures tinned copper busbar
  • Ease of installation

Technical data

  • Standard BS EN60439-3
  • 1.2mm thickness sheet stell with Epoxy powder coating in RAL 9002
  • IP4X
